Light Duty Single Drum Fishing Winch

FOB Reference Price:Get Latest Price
US $1,000-1,500 / Set | 1 Set/Sets fishing winch (Min. Order)
Supply Ability:
100 Set/Sets per Quarter boat winch
Port:
Shanghai port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
TRUST
Model Number:
Fishing Winch
Part:
winch
Drive power:
Manual, Electric, Hydraulic
Lifting capacity:
0.5-350T
Gypsy/Drum:
Single/Double
Arrangement of gypsy/drum:
Paratactic double drums, Front and back double drums
Marine Winch Applications:
Mooring, Location, Towing, Weigh anchor
Rope dia.:
16-56mm
Holding load:
90-1080KN
Rope capacity:
150-250m
Product name:
Light Duty Single Drum Fishing Winch
Keywords:
Fishing Winch
Packaging & Delivery
Packaging Details
Light Duty Single Drum Fishing Winch is packed with wooden case.
Delivery Time
Shipped in 30 days after payment

Light Duty Single Drum Fishing Winch

Product Description



Manual Winch

The rotary drive mechanism of handle is equipped with stopper (ratchet wheel and pawl), which can keep heavy goods on the required position. Manual winch which is used to be assembled or lift heavy goods also should be equipped with safe handle and brake. Manual winch is generally used for light weight goods without power source.



Electric Winch

Electric winch is widely used in the place where the work is heavy and the required pulling is large. The electric motor of single drum electric winch will drive the drum by gearbox and there is brake between motor and gearbox. To suitable to lift, pull, rotate and more working requirements, there are double drums electric winch and multi drums electric winch. Generally if the rated loading is less than 10T, it will be designed to electric winch.



Hydraulic Winch

Hydraulic winch mainly have large rated loading. Generally when the loading up to 10T-5000T, the winch will be designed to hydraulic winch. It is composed by hydraulic motor (high speed and low speed), hydraulic normally-close multi-pieces type brake, epicyclic gearbox, clutch(optional), drum, support bearing, rack, etc. Hydraulic motor have high mechanical efficiency and large starting torque. It can be equipped with different distributer as per working condition requirements. The structure have good advantages of compact, small size, light weight and nice appearance. The performance features are safety, high efficiency, large staring torque, good stability for low speed, small noise, reliable operation, etc.



Fretures:

Wide versatility, Compact structure, Small size, Light weight, Large lifting, Easy to use and transfer



Specifications:

Single Drum:

Hawser Drum

Motor Power

(kw)

Load

(KN)

Speed

(m/min)

Rope Capacity

(mmxm)

301545×18018.5
401548×18018.5
501548×20022
601552×19030
701560×20030
801565×20037
1001565×20045



Double drums:

HAWSER DRUMMOTOR POWER
(kW)
LOAD
(kN)
SPEED
(m/min)
ROPE SIZE
(mm×m)
301545×18018.5
401548×18018.5
501548×20022
601552×19030
701560×20030
801565×20037
1001565×20037
1251572×21055
1501580×22075
2001590×22090
2501590×220110

Note: the datas in table are just for reference, we could design and recommend correct model according to client's requirements, if you have no idea, just send us ur ship or project information, we could help you.

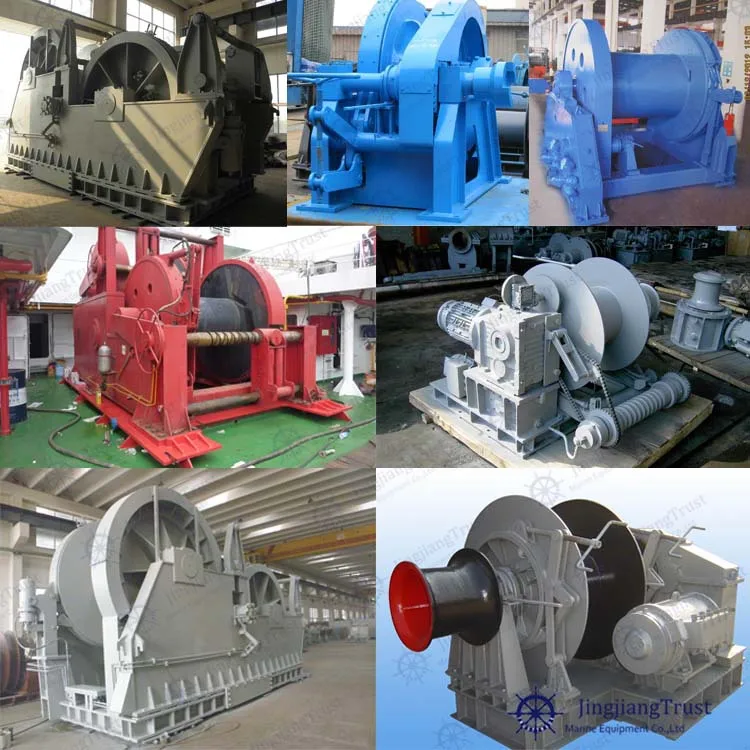

Product details:

Applications:
